E-Series LED Lights

Posted January, 2020

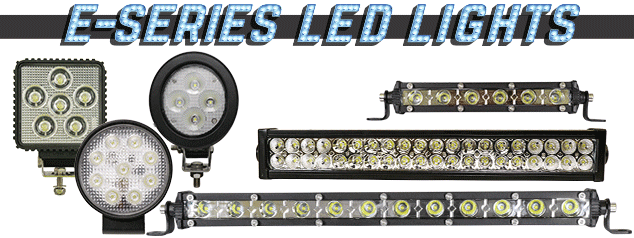

E-Series LED Lights

Sunbelt Outdoor Products introduces new additions to the E-Series LED lineup including 10 new E-Series lightbars. We now have straight E-Series double row lightbars from 22”- 42” and curved E-Series double row lightbars available in 40” or 50”. These lightbars are fitted with Epistar diodes and range from 5800 to 14,000 effective lumens. Additionally, we have added 5 new single row E-Series lightbars ranging from 7” - 32”. Each single row setup is fitted with Cree diodes and range from 1000 to 5000 effective lumens. All of these lightbars include mounting brackets, hardware, and wire spade ends.

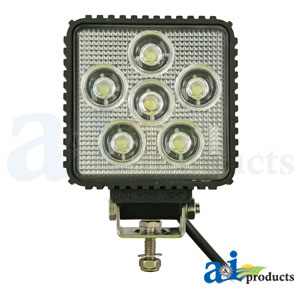

A-WL10E

Square LED Flood Work Light

● Part No. A-WL10E
● (6) 3 watt EPISTAR diodes
● 1,440 raw lumens / 1,150 effective lumens
● Body Size: Width 4.30” X Height 4.30” X Depth 1.50”
● Body Material: Die Cast Aluminum with Polycarbonate Lens
● Voltage: 10-30 Volt DC

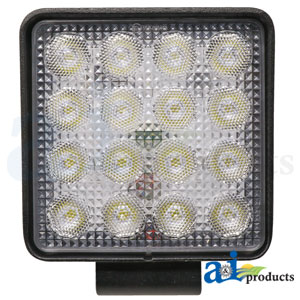

A-WL10E

Square LED Flood Work Light

● Part No. A-WL15E
● (16) 1.5 watt OSRAM diodes
● 3,360 raw lumens / 2,500 effective lumens
● Body Size: Width 4.29” X Height 4.29” X Depth 1.93”
● Body Material: Die Cast Aluminum with Polycarbonate Lens
● Lens Material: Polycarbonate
● Voltage: 10-30 Volt DC

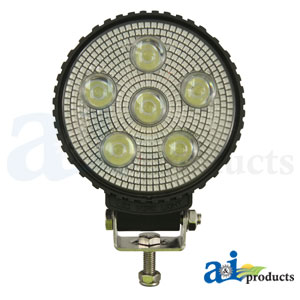

A-WL20E

Round LED Flood Work Light

● Part No. A-WL20E
● (6) 3 watt EPISTAR diodes
● 1,440 raw lumens / 1,200 effective lumens
● Body Size: 4.50” Diameter X 1.50” Depth
● Body Material: Die Cast Aluminum with Polycarbonate Lens
● Voltage: 10-30 Volt DC

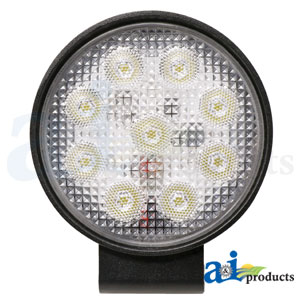

A-WL25E

Round LED Flood Work Lamp

    ● Part No. A-WL25E
    ● (9) 1.5 watt OSRAM diodes
    ● 2,160 raw lumens / 1,500 effective lumens
    ● Body Size: 4.25” Diameter X 1.65” Depth
    ● Body Material: Die Cast Aluminum with Polycarbonate Lens
    ● Voltage: 10-30 Volt DC

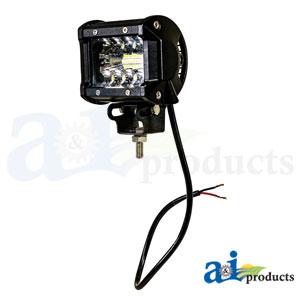

A-WL35E

Square LED Spot Work Light

    ● Part No. A-WL35E
    ● (40) Langyu diodes
    ● 1,400 raw lumens / 1,050 effective lumens
    ● Body Size: 3.82” Width X 3.17” Height X 2.52” Depth
    ● Body Material: Die Cast Aluminum with Acrylic Lens
    ● Voltage: 10-30 Volt DC

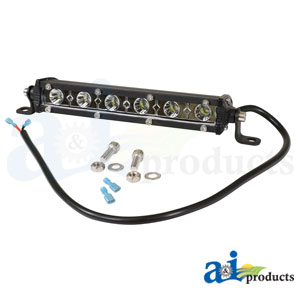

A-LTB37SE

Single Row 7" LED Light Bar

    ● Part No. A-LTB37SE
    ● (6) 3 watt CREE diodes
    ● 1,350 raw lumens / 1,000 effective lumens
    ● Body Size: 7” Length X 1.77” Depth X 1.18” Height
    ● Body Material: Die Cast Aluminum with Polycarbonate Lens
    ● Voltage: 10-30 Volt DC

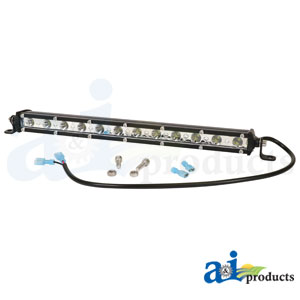

A-LTB313SE

Single Row 13" LED Light Bar

    ● Part No. A-LTB313SE
    ● (12) 3 watt CREE diodes
    ● 2,700 raw lumens / 2,000 effective lumens
    ● Body Size: 13” Length X 1.77” Depth X 1.18” Height
    ● Body Material: Die Cast Aluminum with Polycarbonate Lens
    ● Voltage: 10-30 Volt DC

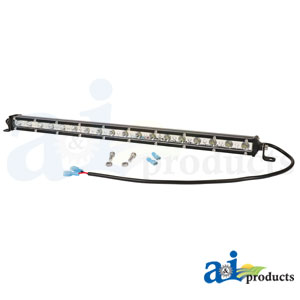

A-LTB320SE

Single Row 20" LED Light Bar

    ● Part No. A-LTB320SE
    ● (18) 3 watt CREE diodes
    ● 4,000 raw lumens / 3,000 effective lumens
    ● Body Size: 20” Length X 1.77” Depth X 1.18” Height
    ● Body Material: Die Cast Aluminum with Polycarbonate Lens
    ● Voltage: 10-30 Volt DC

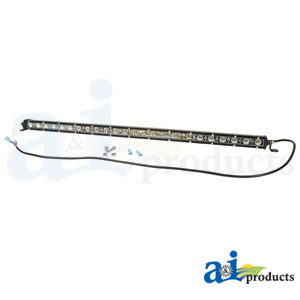

A-LTB326SE

Single Row 26" LED Light Bar

    ● Part No. A-LTB326SE
    ● (24) 3 watt CREE diodes
    ● 5,400 raw lumens / 4,000 effective lumens
    ● Body Size: 26” Length X 1.77” Depth X 1.18” Height
    ● Body Material: Die Cast Aluminum with Polycarbonate Lens
    ● Voltage: 10-30 Volt DC
A-LTB332SE

Single Row 32" LED Light Bar

● Part No. A-LTB332SE
● (30) 3 watt CREE diodes
● 6,700 raw lumens / 5,000 effective lumens
● Body Size: 32” Length X 1.77” Depth X 1.18” Height
● Body Material: Die Cast Aluminum with Polycarbonate Lens
● Voltage: 10-30 Volt DC
